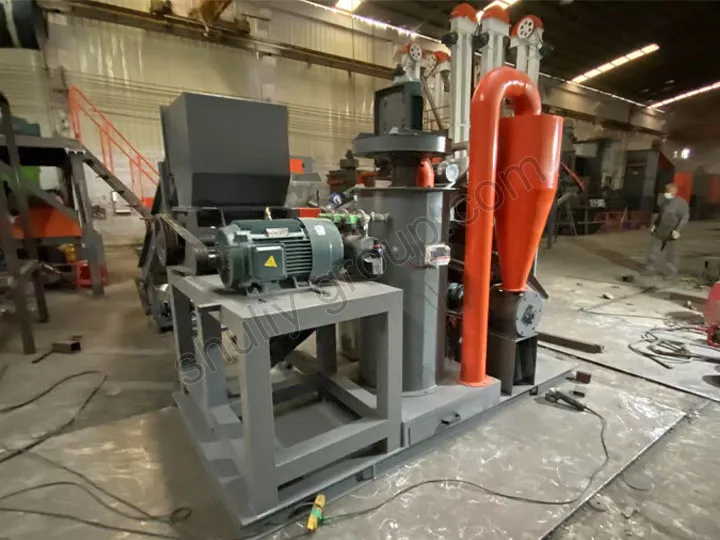

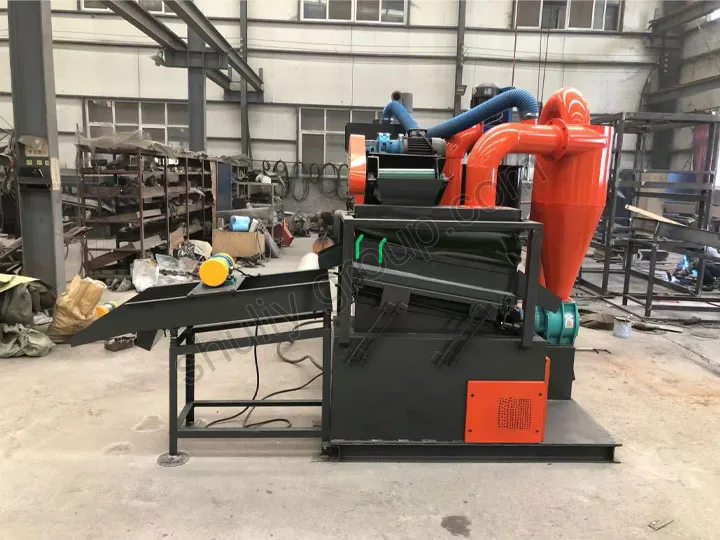

30-150kg/h Small Cable Granulator

What’s The Best Cable Granulator?

The best cable granulator (30–150 kg/h) is a compact, high-efficiency recycling machine designed to process scrap copper wires and cables into clean copper granules and plastic particles. It combines crushing, air separation, and dust collection to achieve a copper purity rate of up to 99%.Choosing us means selecting equipment and a manufacturer that offer a combination of exceptional value, reliable quality, and comprehensive after-sales service.

The working principle of the waste copper wire granulator mainly relies on technologies such as crushing, separation and control:

1. Pre-Sorting of Cable Scrap
   Before granulation, different types of cables are sorted by size and material. Removing impurities such as plugs, steel, or large connectors helps improve the final purity and machine efficiency.
2. Crushing and Shredding
   The sorted cables are fed into a crusher or shredder, where they are cut into small pieces (typically 3–5 mm). This step ensures that copper and plastic are fully liberated for further separation.
3. Air Separation Process
   After crushing, the mixture enters an air separator. Due to differences in density, lighter plastic particles are separated from heavier copper granules through airflow.
4. Vibrating Separation (Gravity Separation)
   A vibrating table further refines the separation. Copper particles move differently from plastic under vibration, achieving high-purity copper (up to 99%).
5. Dust Collection System
   A dust collector is used throughout the process to remove fine particles and maintain a clean, environmentally friendly working environment.

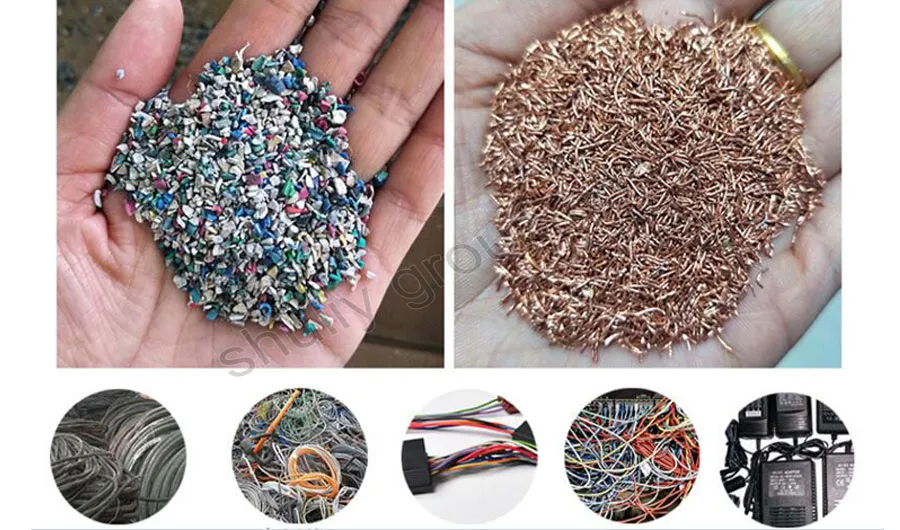

6. Final Output
   The final products include clean copper granules (copper rice) and plastic particles, both of which can be reused or sold.

Small Cable Granulator Technical Parameter

Model	External dimension (mm)	Crusher (KW)	Air conveying (KW)	Wind sorting (KW)	Dust collection (KW)	Output (KG/H)	Weight

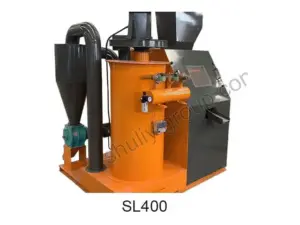

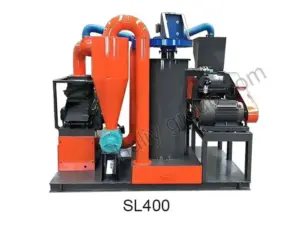

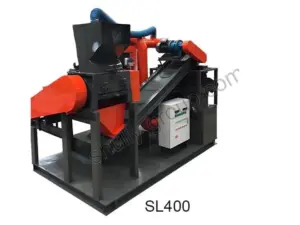

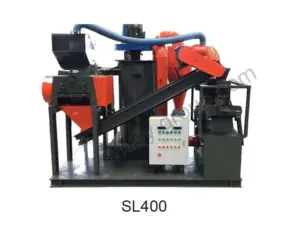

SL-400	2000*1850*2600	15	无 N/A	0.75+22	0.75	100-150	1800
SL-600	4200*1900*3800	37	3	3.75	2.2	300-400	3500
SL-1000	5180*2100*4200	45	4	3.75	3	800-1000	4600

Advantages of The Small Copper Wire Granulator

1. Can process 0.1-30mm cables, with a recycling rate of up to 99%
2. Small footprint, equipped with wheels for easy mobility
3. Customizable voltage, low energy consumption, convenient for home/office use
4. Equipped with a control panel, button operation, single-person control, simple and convenient
5. The discharge port is visible, convenient for observing the raw material sorting and making adjustments
6. The frame is embedded, the structure is more solid, the weight of the whole machine is reduced, and 40Cr shaft + heat treatment process is used
7. The blade uses D2, with good toughness + hardness, durable, and can be used for about one and a half years
8. Equipped with bag dust removal to reduce environmental pollution
9. The motor back design has good heat dissipation
10. Test the machine before delivery, two-year warranty, and support video guidance
11. Rich inventory and fast delivery time
12. High ROI. Low investment, high return

Application of The Small Copper Wire Granulator

The small copper wire granulator is designed to process a wide range of scrap wires and cables. It efficiently separates copper from insulation, making it ideal for handling various raw materials in recycling operations.

1. Household Electrical Wires

Common domestic wires such as single-core and multi-core cables from homes and offices are suitable for granulation. These materials are easy to process and provide stable copper recovery rates.

2. Communication Cables

Data cables, telephone wires, and network cables contain fine copper cores. The granulator can effectively process these thin wires and achieve high separation efficiency.

3. Automotive Wires

Scrap wires from vehicles, including wiring harnesses and internal electrical cables, are important raw materials. These often contain mixed insulation but can still be efficiently separated.

4. Industrial Cables

Various industrial wires, including control cables and flexible cables, can be processed. The machine handles different diameters and insulation types with consistent performance.

5. Waste Electronic Wires (E-Waste)

Wires collected from discarded appliances such as TVs, computers, refrigerators, and air conditioners are suitable for granulation, helping improve resource recycling.

6. Cable Manufacturing Scrap

Leftover wires, defective cables, and edge materials generated during cable production are ideal inputs. Recycling these materials reduces waste and production costs.
